PoE Fiber Single Mode LC Gigabit Ethernet Media Converter - IEEE 802.3 PoE/PoE+ PSE Power Supply - Extends Network Distance up to 20km (12.42 Miles) - 10/100/1000Mbps Auto-Sensing UTP LAN Port - Ideal for Remote Offices, Industrial Networks & Security Camera Systems

$54.83

$99.7

Safe 45%

PoE Fiber Single Mode LC Gigabit Ethernet Media Converter - IEEE 802.3 PoE/PoE+ PSE Power Supply - Extends Network Distance up to 20km (12.42 Miles) - 10/100/1000Mbps Auto-Sensing UTP LAN Port - Ideal for Remote Offices, Industrial Networks & Security Camera Systems

$54.83

$99.7

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

6 people viewing this product right now!

SKU: 65387846

Guranteed safe checkout

Description

AD-net’s PoE type Fiber Media Converters are PSE (Power Sourcing Equipment) type Fiber Converters and PoE injectors in the same device. While you use standard UTP Cat5/6 Eethernet cables to carry data only, now you can also provide power to PDs (Powered Devices) that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power), such as IP cameras, VoIP phones, or Wifi routers that accept POoE power as a PD device. PoE media converter supports autosensing (auto negotiation), meaning that you can connect any of 10/100/1000M devices directly to the ethernet port and it will automatically adapt speed. However, when older legacy 10M equipment does not link correctly, we have provided a feature that enables you to force down the speed down to 10M using a dip switch on the back panel. Media Converters are transparent to VLAN tagged packets, jumbo frames and full and half duplex operation are supported, and since it comes with the power supply in set, you are getting a plug-and-play device. Technical Specifications Fiber Optical Interface Optical wavelength: 1310nm Fiber Type: Single Mode Transmission range: 12.42 mi (or 20 km) Optical interface: LC Duplex Ethernet interface & POE specifications Datarate: 10/100/1000Mbps - Gigabit Autosensing Connector: RJ45 POE Power Output: DC52V, Max 30 Watts (POE/POE+) Standards Supported: IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000 Base-T IEEE 802.3at pre-standard / 802.3af Power over Ethernet standard General Specifications Voltage: Converter Input DC voltage 47-57VDC, External AC-DC power supply, DC48V/1.25A output comes in set Working temperature: 0°C ~ 60°C Dimensions: 94 x 70 x 26 mm (37 x 27.55 x 10.23 in) Relative humidity: 95 %

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Fiber Media Converter and PoE/PoE+ injector All in One Device, supporting IEEE 802.3af, IEEE802.3at and fiber distance up to 12.42 miles (20km), over Single Mode Dual Fiber - 1310nm.

PoE Media Converters transparently link a single mode dual fiber to a copper UTP port while still providing up to 30W of power over Ethernet (PoE) to Powered Devices (PDs) such as IP cameras, VoIP phones, and wireless access points.

Provides one 10/100/1000Base-T autosensing to 100/1000Base-LX Single Mode LC type dual fiber port, however as an extra feature - a UTP Copper Ethernet Port still can be forced to 10M with a dip switch on the back panel.

Supports LFP (Link Loss Propagation Feature) and Jumbo Ethernet Frame by default settings.

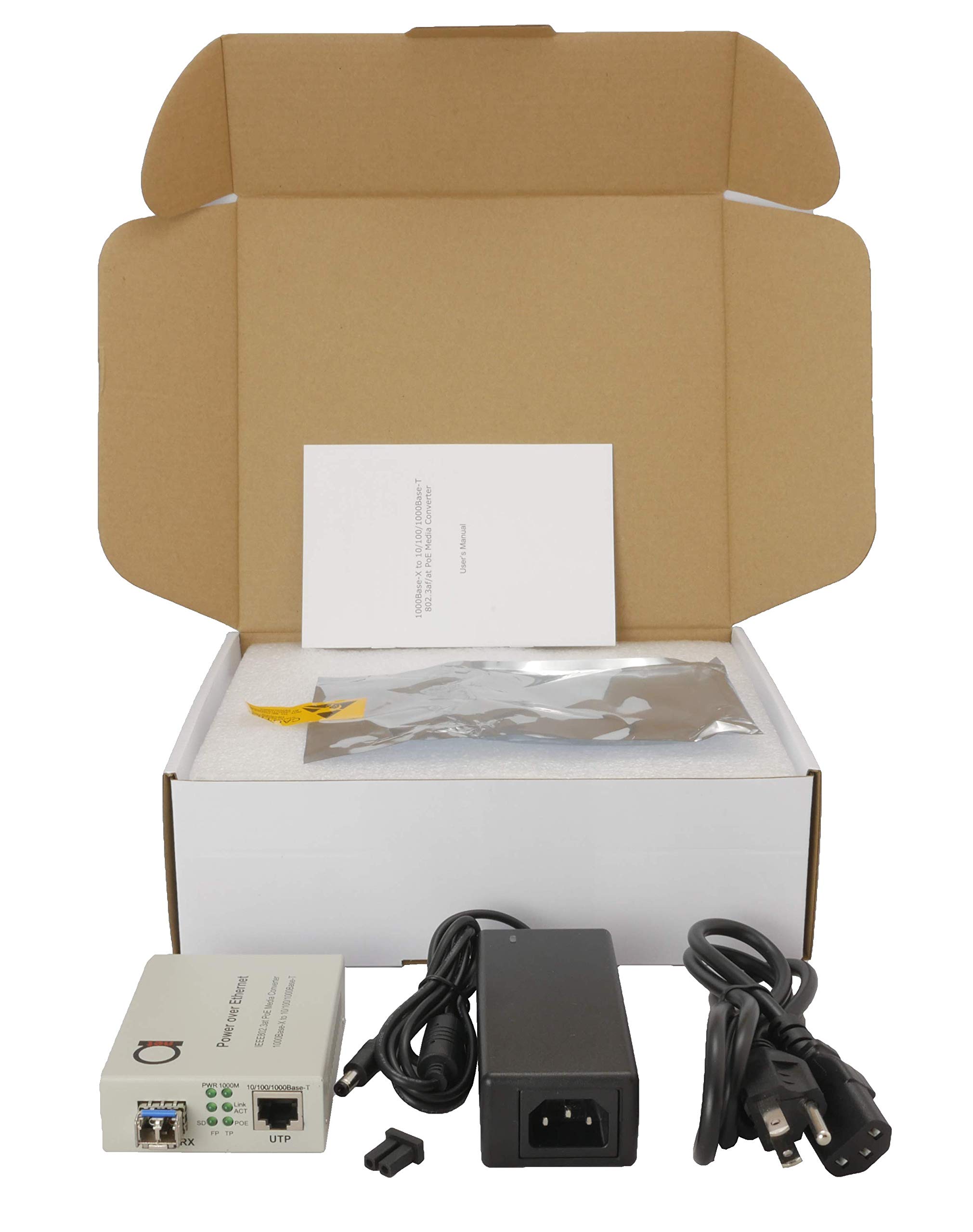

Power input 47-57 VDC, and it comes with a power supply in set, real Plug-and-Play device.

Reviews

*****

Verified Buyer

Plugged in a SM fiber line and works flawlessly providing PoE to an access point. All metal case. The power brick is relatively large but that’s typical for PoE+ devices.
